Clever DIY

DIY Rolling Storing

Isn't it time to organize your house, but require flexible storage space solutions on a budget? This clever and simple DIY rolling storage space is a superb treatment for declutter and obtain arranged. Made from inexpensive wood crates, a couple of pieces of lumber and casters from Home Depot, this DIY rolling storage space option would be both practical and visually appealing.

Generate a DIY rolling storage crate, follow the full guide the following!

1: Measure and Mark – Horizontal Crate Storage

From the 1 x 4 in. x 6 ft. board, measure and then make a mark every 16 3/4 in. This will create four equal parts for legs. You will have a tiny the main board left-over in the end that will be take off.

On the 1 x 12 in. x 8 ft. board, measure and level one area of the board at 37 1/2 in. This is actually the top board.

Mark one section at 36 in. when it comes to bottom board. You are able to discard the remaining piece or save yourself all of them for another project.

From the 4 x 4 in. x 8 ft. post, measure and mark two sections at 36 in. Discard or save your self the remaining piece for another project.

Vertical Crate Space Cuts

To generate the vertical crate storage answer, you will have to improve your measurements somewhat.

1 x 4 in. x 6 ft. board

1 x 12 in. x 8 ft. board

• (1) 26.5 in. piece the top board
• (1) 25 in. piece for the bottom board

4 x 4 in. x 8 ft. post

Step 2: Slice The Wood

Today cut all the lumber.

Step 4: Pre-Drill Holes and connect the Crates hand and hand

Pro-tip: Pre-drilling holes into the crate slats can help keep carefully the lumber slats from splitting.

After pre-drilling the holes, attach the crates alongside by drilling the #10 1 1/4 in. timber screws to the interior sides.

When it comes to vertical crate storage space, stack the crates on top of both and connect them by drilling the #10 1 1/4 in. timber screws to the bottom corners regarding the top crate.

Step 5: Drill the Screws to Create the base

For horizontal storage crate, Align the 4 x 4 in. post pieces using the edges of this 36 in. bottom board. Connect each piece by drilling four of the #8 x 2 in. wood screws near each edge, ensuring the screws are evenly spaced.

For vertical crate storage, align the 4 x 4 in. post pieces because of the edges regarding the 25 in. bottom board. Connect each piece by drilling four of this #8 x 2 in. timber screws near each side, making certain the screws tend to be evenly spaced.

Step 6: Connect

For horizontal crate storage space, align the rear of the crates with the side of the 36 in. bottom board you just connected to the 4 x 4 in. pieces. Drill two #8 x 3/4-in. lumber screws into the sides of each and every crate to add them towards bottom board. This will leave a tiny rack in front of the crates.

For the straight crate storage, bunch the crates over underneath 25 in. board, flush using back. Drill two #8 x 3/4-in. wood screws to the sides of each and every crate to attach all of them towards the bottom board. Once again, this should keep a little shelf at the crates.

Action 7: Attach the Legs

The horizontal crate storage, range the 16 3/4 in. feet up to the surface of every corner. Drill the #10 x 1 1/4-in. lumber screws into each corner on the inside of the crate. Be sure that the legs are flush because of the left and right sides of the crate.

For straight crate storage, align the 22.25 in. feet flush using outside of each corner. Drill the #10 x 1 1/4-in. timber screws into each place inside the crate. Be sure that the feet are flush because of the left and right edges associated with crate.

Put the top board over the crates. Drill the #10 x 1 1/4 in. timber screws in to the interior spot for the crate, making sure your board is flush with the straight back of this crates.

Step 8: Install the Casters

Now it’s time for you put in the casters.

First, pre-drill holes for the casters aided by the #8 x 3/4 in. timber screws. Install four casters externally edges for the 4 x 4 in. feet.

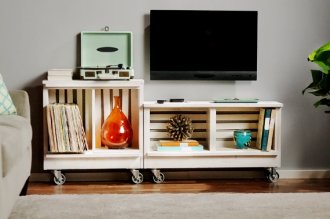

Completed Do-it-yourself Rolling Storage

The completed DIY rolling storage! The best thing about using casters with this project? They allow you to develop a versatile storage space solution that can be moved out of the way easily. Go grab your materials to get arranged because they build this smart DIY rolling storage space!
